Carton Clamps for Every Forklift Operation
Move more cartons, eliminate pallets, and reduce product damage. The right carton clamp attachment transforms your forklift into a high-speed, damage-free carton handling system.
2-8x
Cartons per cycle vs single pallet
$7-15
Saved per pallet eliminated
30%+
Faster loading dock throughput
6-12 mo
Typical payback period
What Is a Carton Clamp?

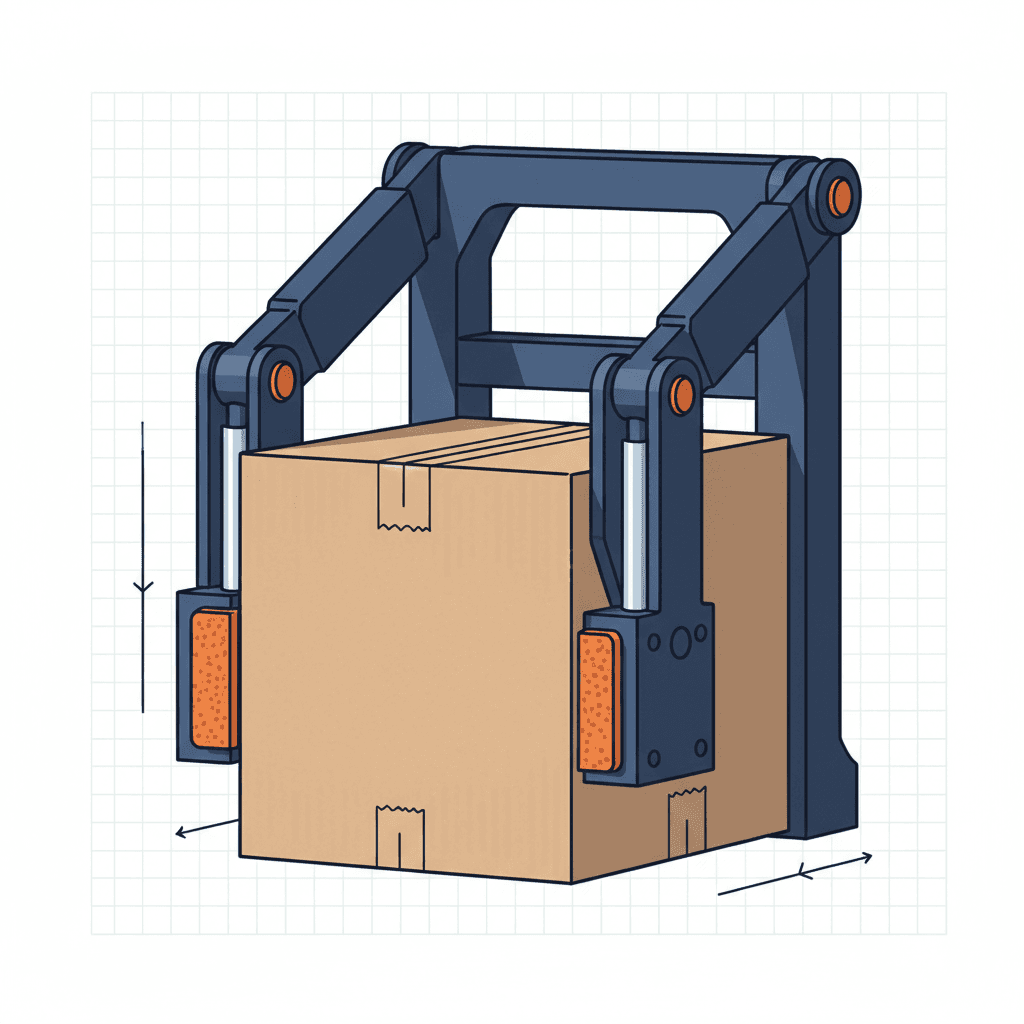

A carton clamp is a hydraulic forklift attachment that replaces traditional forks with two large, opposing arms. These arms squeeze inward to grip cartons, boxes, and bales from the sides, allowing the forklift to pick up, move, and stack loads without pallets.
The clamping force is adjustable, so operators can handle everything from lightweight tissue cartons to heavy appliance boxes without damage. Most carton clamps also feature 360-degree rotation, letting operators change load orientation on the fly.
Industries like beverage distribution, appliance warehousing, and paper products use carton clamps to eliminate pallet costs, speed up material flow, and reduce product damage from conventional fork handling.
Why Operations Switch to Carton Clamps
From beverage distributors to appliance warehouses, carton clamps deliver measurable gains in speed, cost savings, and product protection.
Damage-Free Handling
Adjustable clamping pressure and rubber-faced contact pads protect cartons from crushing, scuffing, and deformation during transport.
Faster Throughput
Handle multiple cartons per cycle without palletizing first. Carton clamps can move 2-8 units at a time, dramatically increasing picks per hour.
Lower Operating Costs
Eliminate pallet costs, reduce stretch wrap usage, and reclaim warehouse floor space previously occupied by pallet staging areas.
360-Degree Rotation
Rotate loads from landscape to portrait orientation on the fly. Essential for tight warehouse aisles and loading dock configurations.
Universal Forklift Mounting
Standard Class II, III, and IV carriage mounting with quick-attach brackets. Fits most major forklift brands including Toyota, Hyster, and Crown.
Low Maintenance Design
Sealed hydraulic cylinders, hardened pivot pins, and replaceable contact pads mean less downtime and lower lifetime cost of ownership.
Types of Carton Clamps
Different applications call for different clamp configurations. Here are the most common types used in warehousing and distribution.
Standard Carton Clamp
The workhorse of the carton clamp family. Two parallel arms with flat contact surfaces for handling standard corrugated cartons.
Best for: General warehousing, beverage distribution, consumer goods
Cascade-Style Rotating Clamp
Features 360-degree continuous rotation for orienting loads. Ideal for operations that need to change carton orientation between pick and place.
Best for: Appliance handling, furniture logistics, mixed-orientation stacking
Long-Arm Carton Clamp
Extended arm length for gripping oversized or tall cartons. Provides wider opening capacity and deeper load penetration.
Best for: Large appliances, mattress boxes, tall packaging
Multi-Purpose Clamp
Combines carton clamping with fork capability. Quick-switch between clamp mode and standard forks without dismounting the attachment.
Best for: Mixed warehouse operations needing both forks and clamps
Industry Applications
Carton clamps serve dozens of industries. These are the sectors where they deliver the highest ROI.
Beverage Distribution
Handle cases of bottled water, soft drinks, and beer without pallets. Clamp pressure tuned for corrugated beverage cases.
Appliance Warehousing
Move boxed appliances safely from receiving dock to racking without product damage. Wide-opening clamps for large boxes.
Paper & Tissue Products
Handle bales and cartons of paper products with wide-face clamps designed for light, compressible loads.
Food & Consumer Goods
Clamp and transport cereal boxes, canned goods, and packaged food products through temperature-controlled warehouses.
How to Choose the Right Carton Clamp
Measure Your Loads
Record the dimensions, weight, and surface type of the cartons you handle most. This determines arm length, opening range, and required clamping force.
Check Forklift Compatibility
Verify your forklift's carriage class (II, III, or IV), residual capacity after attachment weight, and hydraulic auxiliary availability.
Match the Application
Beverage operations need pressure-sensitive pads. Appliance warehouses need wide-opening rotation clamps. Paper handling needs soft-face contact surfaces.
Plan for Throughput
Calculate your daily carton volume. If you're moving 500+ cartons per shift, the ROI case for clamps over palletizing is strong.
Frequently Asked Questions
What is a carton clamp?
A carton clamp is a hydraulic forklift attachment with two opposing arms that grip cartons, boxes, and other rectangular loads from the sides. It allows forklifts to handle products without pallets, reducing material costs and increasing warehouse throughput.
How much clamping force do carton clamps apply?
Clamping force is adjustable and typically ranges from 200 to 10,000+ lbs depending on the model and load requirements. Operators set the pressure based on product type. Fragile goods like electronics need lower pressure, while dense loads like beverages can handle higher force.
What size cartons can a carton clamp handle?
Standard carton clamps handle loads from about 12 inches to 80 inches wide. Arm opening, closing range, and load capacity vary by model. Long-arm variants can accommodate loads up to 100 inches for oversized packaging.
Do carton clamps damage products?
When properly adjusted, carton clamps handle products without damage. Rubber-faced contact pads distribute pressure evenly across the carton surface. The key is matching clamping force to the product: operators should always test and calibrate pressure settings for each product type.
Can any forklift use a carton clamp?
Most counterbalance forklifts with Class II, III, or IV carriages can use carton clamps. The forklift needs adequate lift capacity (the clamp adds 500-1,500 lbs to effective load weight) and hydraulic auxiliary ports. Consult your forklift manufacturer for compatibility.
How do carton clamps reduce warehouse costs?
Carton clamps eliminate pallet purchases ($7-15 per pallet), reduce stretch wrap consumption, save floor space from pallet staging, and increase handling speed. Operations moving 500+ cartons daily often see full ROI within 6-12 months.
Get a Carton Clamp Quote
Tell us about your operation and we'll connect you with the right carton clamp solution.
